The New Cloud Service for GNET Dash Cam Users



withCLOUD™







“withCLOUD” for fleet management system by our own technology. Unlimited storage capacity beyond the limitation of dash camera memory.





Live Streaming	Live GPS tracking
You can monitor a driver and your vehicle as well as every video recorded around you.	Let you know the location of driver by tracking vehicle’s routes and monitor of a driver traffic conditions.



Statistics	Geo-Fence
It analyzes driving patterns and lets you know the summarized data.	With Geo-Fence,a designated location will be defined and notified  to drivers with a security alert.

























   3 Functions for Safe Driving



ADAS





"ADAS update"

ADAS is a safe driving assistance system for the driver's safe driving environment



FVSA Front Vehicle Start Alarm		FCWS Forward Collision Warning System		LDWS Lane Departure Warning System
The vehicle in front of you is pulling away more than 2 meters, the dash cam let the driver know with the beep sound  also the departure icon on the LCD screen. *Non-LCD product provides sound warning only		If the distance of the vehicle in front of you is reducing rapidly in short time with high speed, the dash cam let driver know with the beep sound and display collision warning icon on the LCD screen. *Non-LCD product provides sound warning only		If you leave the lane while driving, the dash cam let the driver know with beep sound and it shows yellow or red lines for notification on the LCD screen. *Non-LCD product provides sound warning only





* Warning icons for lane detection, forward departure and collision are only visible if the LCD is on.
ADAS settings are available when the GPS is connected.

























   Four Times Sharper than Full HD



4K UHD Resolution





It provides vivid and detailed

3840X 2160P 4K ULTRA UHD resolution

*The image may be displayed in different quality depending on the monitor specification.



























   Available for Long Parking Records



TIME LAPSE





Time-lapse function automatically applied when entering parking mode





Time Lapse mode records one frame per second, minimizing the size of the video for a long time to record parking.

























   Optimal Viewing Angle without Distortion



WIDE VIEWING ANGLE





Front camera: Left / Right distortion-free viewing angle 150 degrees Internal I R camera(driver, passenger): 150 degrees







Excessive angle of view refracts the image, causing effects such as distortion and loss of distance.

The GNET System has an optimal camera angle of 160° without those problems,

the situation of accidents on the side angle is recorded more reliably, and images without distortion of left / right / up / down are provided.



























   Capacitive Touch Screen



LCD GUI





Easier and clearer 3. 5 inch LCD touch screen with widescreen







The Real-time video, Play recorded video, Dash Cam Settings, LED setting and memory card

with smart GUI can be managed directly from the front camera without PC connection.







MAIN PAGE	SETTINGS PAGE
This is the main page where you can play the recorded video, live video, setup, Wi-Fi, standby mode, and power off.	the system to record, time, sound, ADAS, events, and settings













Method of operation of electricity touch LCD





Drag left on main screen
The screen appears in main → Setup → System → Main











When dragging to the right of the main screen, the real-time screen appears.
* On the real-time screen, drag left or right in any direction, but it will be transferred to the main screen.











You can zoom in and out of the images with two fingers on the real-time and recorded video playback screens.
* If you want to view the video in its original size, press the LCD with one finger for approximately 1 second to restore the video to its original size.

























   Smartphone Link via Wi-Fi®



G-NET APP







User-friendly GUI



User convenience has been further upgraded

using intuitive icons for anyone to operate conveniently











User-focused Firmware Upgrade	All the features you need at once! Easy and convenient GNET APP	Customized configuration by APP
After accessing the firmware configuration by APP, the latest firmware can be automatically searched for and downloaded.	You can easily set up device registration, real-time video setup, recorded video list, and customer support through the main screen.	Using the Smartphone APP, you can upgrade the firmware and play video as well as configure various settings











*You can only connect your smartphone with WiFi dongle connected to the black box (WiFi dongle is sold separately)

*Disable IOT/WiFi feature when CLOUD is enabled

























   Intelligent function for vehicle battery discharge protection



LBP FUNCTION





It is an intelligent Safe Guard function that automatically shuts down recording when the voltage falls below

a specified voltage and cuts off the power to protect the battery of the vehicle.







LBP FUNCTION AUTO SAFE GUARD ( LBP ON / OFF )



Settings can be made directly from the dedicated GNET PC VIEWER, and the vehicle voltage can be checked when checking

the recorded video of the vehicle. You can easily set up wirelessly via GNET APP at the time of smartphone interlocking





Division	Configurable Voltage (V)
Power Off	11.3	11.5	11.8	12	12.3

























   Convenient and Diverse Functions



FUNCTION





HIGH TEMPERATURE TEST PASS	MEMORY CARD AUTOMATIC RECOVERY AND SELF-FORMAT	BUILT-IN VOICE GUIDE AND MICROPHONE
G-Net has been passed the high-temperature test. Differs from other brand dash cameras which shut down the power because they can not withstand high temperatures.	Unlike other companies' black boxes, which require users to format periodically, JDR's own file system with excellent reliability is applied for convenient use without regular format.	It has a friendly voice guide, high-quality voice recording, and a high-performance microphone, which makes it easier to check the operation and recording conditions while driving.



SECURITY LED FUNCTION	EXTERNAL GPS	VARIOUS RECORDING MODES
It is equipped with intelligent security LED function to prevent crimes that can parking terrorism and theft. With a clear view, it detects movement in parking mode and starts recording automatically.	You can check at a glance the data image received from the GPS while driving. * External GPS is optional (sold separately)	Parking Surveillance / Motion Detection The event recording is automatically recorded for a certain period of time when the impact is detected on the vehicle in various recording modes.

























  Compitable GNET PC VIEWER



GNET PC VIEWER





Easily play and check the recorded video with a viewer program for PC



It provides various functions Zoom, partial zoom function, Lane drawing function, set recording frame.
Backup features include AVI file generation, tampering prevention, thumbnails, and interval repetitive searches.









---

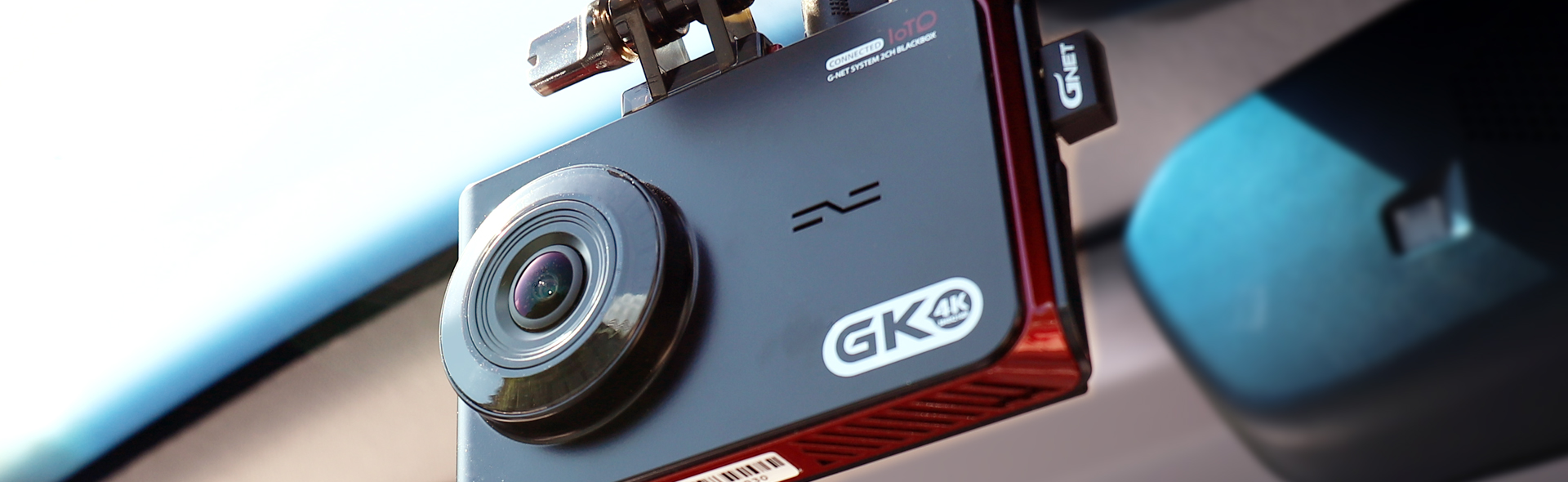

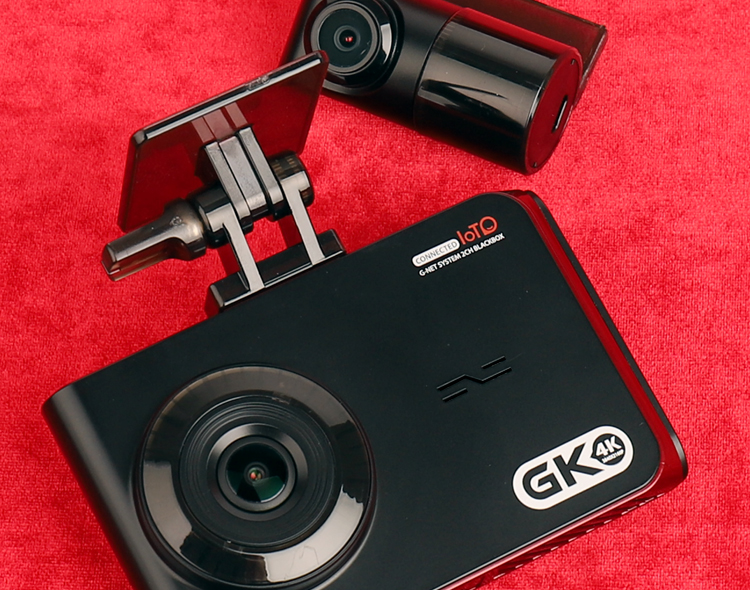

   GK (GNET 4K) DASH CAM



SPECIFICATION



















※The image of components may be different from the real components.
※Specifications and Components may be changed without notice for improving quality.
※We are highly recommend to use a Genuine Memory card from Gnetsystem.













Image Sensor		UHD CMOS Sensor
Audio input		Built-in Microphone
Video Compression		Front CAM : H.265 / Rear CAM : H.264
Audio Compression		ADPCM
Resolution		Front Cam 1080P(3840x2160) / Rear Cam 1080P(1920x1080)
FPS		Max. 30fps
OBD2		Vehicle Status Check and Diagnosis by using OBD2 module(optional)
Wi-Fi (Optional)		Connect to GNET Smart phone application via Wi-fi dongle
G-Sensor		Event recording by External Shock
Speaker		Operation Status alarm / Voice guidance
External GPS (Optional)		Location & speed recording, based on Google map(optional)
Lens		Front : 160 degrees / Rear : 150 degrees
Viewer		Windows XP/7/8/10, Support 32Bit / 64Bit, Synchronizing Google map with PC viewer is supported over Windows7 and explorer 10 as per Google' s policy.
Power		DC 12V - 24V
Allowable current of providing fuse		3A
Operation Temperature		-20℃ ~ 80℃(Storage : -20℃ ~ 90℃)
Humidity		10~95%
LCD(Touch)		480 x 320 Electrostatic LCD touch screen
